Broadband and Multi-Octave Amplifiers

Broadband

6.0 to 18.0 GHz

Model No.	Frequency Range GHz (Min-Max)	Gain dB (Min/Typ)	Gain Flatness dB (Max/Typ)	Gain Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size
CA618-2001	6.0 - 18.0	14	±1.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	100	K2
CA618-2002	6.0 - 18.0	14	±1.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	150	K2
CA618-2003	6.0 - 18.0	13	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K2
CA618-2004	6.0 - 18.0	12	±1.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	250	K2
CA618-2005	6.0 - 18.0	11	±1.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	300	K2
CA618-2006	6.0 - 18.0	10	±1.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	420	K2-SQCR
CA618-3001	6.0 - 18.0	20	±1.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	150	K3
CA618-3002	6.0 - 18.0	20	±1.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3003	6.0 - 18.0	19	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3003B	6.0 - 18.0	21	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3004	6.0 - 18.0	18	±1.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3005	6.0 - 18.0	17	±1.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	350	K3
CA618-3006	6.0 - 18.0	16	±2.0	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K3
CA618-4001	6.0 - 18.0	26	±2.0	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-4002	6.0 - 18.0	25	±2.0	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-4003	6.0 - 18.0	25	±2.0	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-4004	6.0 - 18.0	24	±2.0	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-4005	6.0 - 18.0	23	±2.0	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	400	K4
CA618-4112	6.0 - 18.0	25	±2.5	5.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-4006	6.0 - 18.0	22	±2.0	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-256025	6.0 - 18.0	25	±2.0	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-4008	6.0 - 18.0	20	±2.0	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-256027	6.0 - 18.0	25	±2.0	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-256030	6.0 - 18.0	25	±2.0	6.0	30	40	2.0:1/1.5:1	2.0:1/1.5:1	1600	K4
CA618-256033	6.0 - 18.0	25	±2.0	6.0	33	43	2.0:1/1.5:1	2.0:1/1.5:1	2000	K4
CA618-254010	6.0 - 18.0	25	±1.5	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-254012	6.0 - 18.0	25	±1.5	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-254015	6.0 - 18.0	25	±1.5	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-254017	6.0 - 18.0	25	±1.5	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-254020	6.0 - 18.0	25	±1.5	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-254023	6.0 - 18.0	25	±1.5	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-254024	6.0 - 18.0	25	±1.5	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-254025	6.0 - 18.0	25	±1.5	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K3S
CA618-254027	6.0 - 18.0	25	±1.5	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-254030	6.0 - 18.0	25	±1.5	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1600	K4-PA
CA618-254033	6.0 - 18.0	25	±1.5	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-253510	6.0 - 18.0	25	±1.5	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-253512	6.0 - 18.0	25	±1.5	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-253515	6.0 - 18.0	25	±1.5	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-253517	6.0 - 18.0	25	±1.5	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-253520	6.0 - 18.0	25	±1.5	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-253523	6.0 - 18.0	25	±1.5	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-253524	6.0 - 18.0	25	±1.5	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-253525	6.0 - 18.0	25	±1.5	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-253527	6.0 - 18.0	25	±1.5	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-253530	6.0 - 18.0	25	±1.5	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-253533	6.0 - 18.0	25	±1.5	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-253010	6.0 - 18.0	25	±1.5	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-253012	6.0 - 18.0	25	±1.5	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-253015	6.0 - 18.0	25	±1.5	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-253017	6.0 - 18.0	25	±1.5	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-253020	6.0 - 18.0	25	±1.5	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-253023	6.0 - 18.0	25	±1.5	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-253024	6.0 - 18.0	25	±1.5	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-253025	6.0 - 18.0	25	±1.5	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-253027	6.0 - 18.0	25	±1.5	3.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-253030	6.0 - 18.0	25	±1.5	3.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-253033	6.0 - 18.0	25	±1.5	3.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-252510	6.0 - 18.0	25	±1.5	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-252512	6.0 - 18.0	25	±1.5	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-252515	6.0 - 18.0	25	±1.5	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-252517	6.0 - 18.0	25	±1.5	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-252520	6.0 - 18.0	25	±1.5	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-252523	6.0 - 18.0	25	±1.5	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-252524	6.0 - 18.0	25	±1.5	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-252525	6.0 - 18.0	25	±1.5	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-252527	6.0 - 18.0	25	±1.5	2.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-252530	6.0 - 18.0	25	±1.5	2.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-252533	6.0 - 18.0	25	±1.5	2.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-5001	6.0 - 18.0	30	±2.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-5002	6.0 - 18.0	30	±2.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-5003	6.0 - 18.0	30	±2.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-5004	6.0 - 18.0	30	±2.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-5005	6.0 - 18.0	30	±2.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-5006	6.0 - 18.0	30	±2.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K6
CA618-306024	6.0 - 18.0	30	±2.5	6.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-306025	6.0 - 18.0	30	±2.5	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	850	K6
CA618-306027	6.0 - 18.0	30	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-5101	6.0 - 18.0	30	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-5102	6.0 - 18.0	30	±2.5	6.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-304010	6.0 - 18.0	30	±2.0	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-304012	6.0 - 18.0	30	±2.0	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-304015	6.0 - 18.0	30	±2.0	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-304017	6.0 - 18.0	30	±2.0	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-304020	6.0 - 18.0	30	±2.0	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-304023	6.0 - 18.0	30	±2.0	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-304024	6.0 - 18.0	30	±2.0	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-304025	6.0 - 18.0	30	±2.0	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-304027	6.0 - 18.0	30	±2.0	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-304030	6.0 - 18.0	30	±2.0	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-304033	6.0 - 18.0	30	±2.0	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-303510	6.0 - 18.0	30	±2.0	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-303512	6.0 - 18.0	30	±2.0	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-303515	6.0 - 18.0	30	±2.0	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-303517	6.0 - 18.0	30	±2.0	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-303520	6.0 - 18.0	30	±2.0	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-303523	6.0 - 18.0	30	±2.0	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-303524	6.0 - 18.0	30	±2.0	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-303525	6.0 - 18.0	30	±2.0	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-303527	6.0 - 18.0	30	±2.0	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-303530	6.0 - 18.0	30	±2.0	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-303533	6.0 - 18.0	30	±2.0	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-303010	6.0 - 18.0	30	±2.0	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-303012	6.0 - 18.0	30	±2.0	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-303015	6.0 - 18.0	30	±2.0	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-303017	6.0 - 18.0	30	±2.0	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-303020	6.0 - 18.0	30	±2.0	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-303023	6.0 - 18.0	30	±2.0	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-303024	6.0 - 18.0	30	±2.0	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-303025	6.0 - 18.0	30	±2.0	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-302510	6.0 - 18.0	30	±2.0	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-302512	6.0 - 18.0	30	±2.0	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-302515	6.0 - 18.0	30	±2.0	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-302517	6.0 - 18.0	30	±2.0	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-302520	6.0 - 18.0	30	±2.0	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-302523	6.0 - 18.0	30	±2.0	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-302524	6.0 - 18.0	30	±2.0	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-302525	6.0 - 18.0	30	±2.0	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-6001	6.0 - 18.0	38	±2.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-6002	6.0 - 18.0	38	±2.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-6003	6.0 - 18.0	37	±2.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-6004	6.0 - 18.0	36	±2.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-6005	6.0 - 18.0	35	±2.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-6006	6.0 - 18.0	34	±2.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-356024	6.0 - 18.0	35	±2.5	6.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-356025	6.0 - 18.0	35	±2.5	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-6008	6.0 - 18.0	32	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-356027	6.0 - 18.0	35	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-6114	6.0 - 18.0	35	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1200	K6+ISO
CA618-356030	6.0 - 18.0	35	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K6
CA618-6115	6.0 - 18.0	35	±2.5	6.0	32	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	BB+ISO
CA618-356033	6.0 - 18.0	35	±2.5	6.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-354010	6.0 - 18.0	35	±2.0	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-354012	6.0 - 18.0	35	±2.0	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-354015	6.0 - 18.0	35	±2.0	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-354017	6.0 - 18.0	35	±2.0	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-354020	6.0 - 18.0	35	±2.0	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-354023	6.0 - 18.0	35	±2.0	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-354024	6.0 - 18.0	35	±2.0	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-354025	6.0 - 18.0	35	±2.0	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-354027	6.0 - 18.0	35	±2.0	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-354030	6.0 - 18.0	35	±2.0	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-354033	6.0 - 18.0	35	±2.0	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-353510	6.0 - 18.0	35	±2.0	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-353512	6.0 - 18.0	35	±2.0	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-353515	6.0 - 18.0	35	±2.0	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-353517	6.0 - 18.0	35	±2.0	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-353520	6.0 - 18.0	35	±2.0	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-353523	6.0 - 18.0	35	±2.0	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-353524	6.0 - 18.0	35	±2.0	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-353525	6.0 - 18.0	35	±2.0	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-353527	6.0 - 18.0	35	±2.0	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-353530	6.0 - 18.0	35	±2.0	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-353533	6.0 - 18.0	35	±2.0	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-353010	6.0 - 18.0	35	±2.0	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-353012	6.0 - 18.0	35	±2.0	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-353015	6.0 - 18.0	35	±2.0	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-353017	6.0 - 18.0	35	±2.0	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-353020	6.0 - 18.0	35	±2.0	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-353023	6.0 - 18.0	35	±2.0	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-353024	6.0 - 18.0	35	±2.0	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-353025	6.0 - 18.0	35	±2.0	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-352510	6.0 - 18.0	35	±2.0	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-352512	6.0 - 18.0	35	±2.0	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-352515	6.0 - 18.0	35	±2.0	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-352017	6.0 - 18.0	35	±2.0	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-352520	6.0 - 18.0	35	±2.0	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-352523	6.0 - 18.0	35	±2.0	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-352524	6.0 - 18.0	35	±2.0	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-352526	6.0 - 18.0	35	±2.0	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6

8.0 to 18.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

14.0 to 18.6 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

0.5 GHz to 18.0 GHz

0.5 to 2.0 GHz

Model No.	Frequency Range GHz (Min-Max)	Gain dB (Min/Typ)	Gain Flatness dB (Max/Typ)	Gain Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size
CA618-2001	6.0 - 18.0	14	±1.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	100	K2
CA618-2002	6.0 - 18.0	14	±1.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	150	K2
CA618-2003	6.0 - 18.0	13	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K2
CA618-2004	6.0 - 18.0	12	±1.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	250	K2
CA618-2005	6.0 - 18.0	11	±1.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	300	K2
CA618-2006	6.0 - 18.0	10	±1.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	420	K2-SQCR
CA618-3001	6.0 - 18.0	20	±1.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	150	K3
CA618-3002	6.0 - 18.0	20	±1.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3003	6.0 - 18.0	19	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3003B	6.0 - 18.0	21	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3004	6.0 - 18.0	18	±1.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3005	6.0 - 18.0	17	±1.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	350	K3
CA618-3006	6.0 - 18.0	16	±2.0	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K3
CA618-4001	6.0 - 18.0	26	±2.0	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-4002	6.0 - 18.0	25	±2.0	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-4003	6.0 - 18.0	25	±2.0	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-4004	6.0 - 18.0	24	±2.0	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-4005	6.0 - 18.0	23	±2.0	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	400	K4
CA618-4112	6.0 - 18.0	25	±2.5	5.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-4006	6.0 - 18.0	22	±2.0	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-256025	6.0 - 18.0	25	±2.0	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-4008	6.0 - 18.0	20	±2.0	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-256027	6.0 - 18.0	25	±2.0	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-256030	6.0 - 18.0	25	±2.0	6.0	30	40	2.0:1/1.5:1	2.0:1/1.5:1	1600	K4
CA618-256033	6.0 - 18.0	25	±2.0	6.0	33	43	2.0:1/1.5:1	2.0:1/1.5:1	2000	K4
CA618-254010	6.0 - 18.0	25	±1.5	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-254012	6.0 - 18.0	25	±1.5	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-254015	6.0 - 18.0	25	±1.5	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-254017	6.0 - 18.0	25	±1.5	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-254020	6.0 - 18.0	25	±1.5	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-254023	6.0 - 18.0	25	±1.5	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-254024	6.0 - 18.0	25	±1.5	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-254025	6.0 - 18.0	25	±1.5	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K3S
CA618-254027	6.0 - 18.0	25	±1.5	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-254030	6.0 - 18.0	25	±1.5	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1600	K4-PA
CA618-254033	6.0 - 18.0	25	±1.5	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-253510	6.0 - 18.0	25	±1.5	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-253512	6.0 - 18.0	25	±1.5	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-253515	6.0 - 18.0	25	±1.5	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-253517	6.0 - 18.0	25	±1.5	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-253520	6.0 - 18.0	25	±1.5	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-253523	6.0 - 18.0	25	±1.5	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-253524	6.0 - 18.0	25	±1.5	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-253525	6.0 - 18.0	25	±1.5	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-253527	6.0 - 18.0	25	±1.5	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-253530	6.0 - 18.0	25	±1.5	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-253533	6.0 - 18.0	25	±1.5	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-253010	6.0 - 18.0	25	±1.5	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-253012	6.0 - 18.0	25	±1.5	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-253015	6.0 - 18.0	25	±1.5	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-253017	6.0 - 18.0	25	±1.5	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-253020	6.0 - 18.0	25	±1.5	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-253023	6.0 - 18.0	25	±1.5	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-253024	6.0 - 18.0	25	±1.5	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-253025	6.0 - 18.0	25	±1.5	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-253027	6.0 - 18.0	25	±1.5	3.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-253030	6.0 - 18.0	25	±1.5	3.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-253033	6.0 - 18.0	25	±1.5	3.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-252510	6.0 - 18.0	25	±1.5	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-252512	6.0 - 18.0	25	±1.5	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-252515	6.0 - 18.0	25	±1.5	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-252517	6.0 - 18.0	25	±1.5	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-252520	6.0 - 18.0	25	±1.5	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-252523	6.0 - 18.0	25	±1.5	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-252524	6.0 - 18.0	25	±1.5	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-252525	6.0 - 18.0	25	±1.5	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-252527	6.0 - 18.0	25	±1.5	2.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-252530	6.0 - 18.0	25	±1.5	2.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-252533	6.0 - 18.0	25	±1.5	2.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-5001	6.0 - 18.0	30	±2.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-5002	6.0 - 18.0	30	±2.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-5003	6.0 - 18.0	30	±2.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-5004	6.0 - 18.0	30	±2.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-5005	6.0 - 18.0	30	±2.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-5006	6.0 - 18.0	30	±2.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K6
CA618-306024	6.0 - 18.0	30	±2.5	6.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-306025	6.0 - 18.0	30	±2.5	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	850	K6
CA618-306027	6.0 - 18.0	30	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-5101	6.0 - 18.0	30	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-5102	6.0 - 18.0	30	±2.5	6.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-304010	6.0 - 18.0	30	±2.0	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-304012	6.0 - 18.0	30	±2.0	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-304015	6.0 - 18.0	30	±2.0	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-304017	6.0 - 18.0	30	±2.0	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-304020	6.0 - 18.0	30	±2.0	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-304023	6.0 - 18.0	30	±2.0	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-304024	6.0 - 18.0	30	±2.0	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-304025	6.0 - 18.0	30	±2.0	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-304027	6.0 - 18.0	30	±2.0	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-304030	6.0 - 18.0	30	±2.0	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-304033	6.0 - 18.0	30	±2.0	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-303510	6.0 - 18.0	30	±2.0	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-303512	6.0 - 18.0	30	±2.0	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-303515	6.0 - 18.0	30	±2.0	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-303517	6.0 - 18.0	30	±2.0	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-303520	6.0 - 18.0	30	±2.0	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-303523	6.0 - 18.0	30	±2.0	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-303524	6.0 - 18.0	30	±2.0	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-303525	6.0 - 18.0	30	±2.0	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-303527	6.0 - 18.0	30	±2.0	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-303530	6.0 - 18.0	30	±2.0	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-303533	6.0 - 18.0	30	±2.0	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-303010	6.0 - 18.0	30	±2.0	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-303012	6.0 - 18.0	30	±2.0	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-303015	6.0 - 18.0	30	±2.0	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-303017	6.0 - 18.0	30	±2.0	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-303020	6.0 - 18.0	30	±2.0	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-303023	6.0 - 18.0	30	±2.0	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-303024	6.0 - 18.0	30	±2.0	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-303025	6.0 - 18.0	30	±2.0	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-302510	6.0 - 18.0	30	±2.0	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-302512	6.0 - 18.0	30	±2.0	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-302515	6.0 - 18.0	30	±2.0	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-302517	6.0 - 18.0	30	±2.0	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-302520	6.0 - 18.0	30	±2.0	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-302523	6.0 - 18.0	30	±2.0	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-302524	6.0 - 18.0	30	±2.0	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-302525	6.0 - 18.0	30	±2.0	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-6001	6.0 - 18.0	38	±2.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-6002	6.0 - 18.0	38	±2.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-6003	6.0 - 18.0	37	±2.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-6004	6.0 - 18.0	36	±2.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-6005	6.0 - 18.0	35	±2.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-6006	6.0 - 18.0	34	±2.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-356024	6.0 - 18.0	35	±2.5	6.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-356025	6.0 - 18.0	35	±2.5	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-6008	6.0 - 18.0	32	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-356027	6.0 - 18.0	35	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-6114	6.0 - 18.0	35	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1200	K6+ISO
CA618-356030	6.0 - 18.0	35	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K6
CA618-6115	6.0 - 18.0	35	±2.5	6.0	32	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	BB+ISO
CA618-356033	6.0 - 18.0	35	±2.5	6.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-354010	6.0 - 18.0	35	±2.0	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-354012	6.0 - 18.0	35	±2.0	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-354015	6.0 - 18.0	35	±2.0	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-354017	6.0 - 18.0	35	±2.0	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-354020	6.0 - 18.0	35	±2.0	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-354023	6.0 - 18.0	35	±2.0	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-354024	6.0 - 18.0	35	±2.0	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-354025	6.0 - 18.0	35	±2.0	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-354027	6.0 - 18.0	35	±2.0	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-354030	6.0 - 18.0	35	±2.0	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-354033	6.0 - 18.0	35	±2.0	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-353510	6.0 - 18.0	35	±2.0	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-353512	6.0 - 18.0	35	±2.0	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-353515	6.0 - 18.0	35	±2.0	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-353517	6.0 - 18.0	35	±2.0	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-353520	6.0 - 18.0	35	±2.0	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-353523	6.0 - 18.0	35	±2.0	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-353524	6.0 - 18.0	35	±2.0	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-353525	6.0 - 18.0	35	±2.0	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-353527	6.0 - 18.0	35	±2.0	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-353530	6.0 - 18.0	35	±2.0	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-353533	6.0 - 18.0	35	±2.0	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-353010	6.0 - 18.0	35	±2.0	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-353012	6.0 - 18.0	35	±2.0	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-353015	6.0 - 18.0	35	±2.0	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-353017	6.0 - 18.0	35	±2.0	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-353020	6.0 - 18.0	35	±2.0	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-353023	6.0 - 18.0	35	±2.0	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-353024	6.0 - 18.0	35	±2.0	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-353025	6.0 - 18.0	35	±2.0	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-352510	6.0 - 18.0	35	±2.0	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-352512	6.0 - 18.0	35	±2.0	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-352515	6.0 - 18.0	35	±2.0	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-352017	6.0 - 18.0	35	±2.0	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-352520	6.0 - 18.0	35	±2.0	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-352523	6.0 - 18.0	35	±2.0	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-352524	6.0 - 18.0	35	±2.0	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-352526	6.0 - 18.0	35	±2.0	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6

0.5 to 4.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

0.5 to 6.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

0.5 to 18.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

1.0 GHz up to 18.0 GHz

1.0 – 4.0 GHz

1.0 – 6.0 GHz

1.0 – 8.0 GHz

1.0 – 10.0 GHz

1.0 – 11.0 GHz

1.0 – 18.0 GHz

wpDataTable with provided ID not found!

wpDataTable with provided ID not found!

wpDataTable with provided ID not found!

wpDataTable with provided ID not found!

wpDataTable with provided ID not found!

wpDataTable with provided ID not found!

0.5 to 2.0 GHz

Model No.	Frequency Range GHz (Min-Max)	Gain dB (Min/Typ)	Gain Flatness dB (Max/Typ)	Gain Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size
CA618-2001	6.0 - 18.0	14	±1.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	100	K2
CA618-2002	6.0 - 18.0	14	±1.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	150	K2
CA618-2003	6.0 - 18.0	13	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K2
CA618-2004	6.0 - 18.0	12	±1.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	250	K2
CA618-2005	6.0 - 18.0	11	±1.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	300	K2
CA618-2006	6.0 - 18.0	10	±1.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	420	K2-SQCR
CA618-3001	6.0 - 18.0	20	±1.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	150	K3
CA618-3002	6.0 - 18.0	20	±1.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3003	6.0 - 18.0	19	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3003B	6.0 - 18.0	21	±1.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3004	6.0 - 18.0	18	±1.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	200	K3
CA618-3005	6.0 - 18.0	17	±1.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	350	K3
CA618-3006	6.0 - 18.0	16	±2.0	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K3
CA618-4001	6.0 - 18.0	26	±2.0	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-4002	6.0 - 18.0	25	±2.0	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-4003	6.0 - 18.0	25	±2.0	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-4004	6.0 - 18.0	24	±2.0	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-4005	6.0 - 18.0	23	±2.0	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	400	K4
CA618-4112	6.0 - 18.0	25	±2.5	5.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-4006	6.0 - 18.0	22	±2.0	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-256025	6.0 - 18.0	25	±2.0	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-4008	6.0 - 18.0	20	±2.0	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-256027	6.0 - 18.0	25	±2.0	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	700	K4
CA618-256030	6.0 - 18.0	25	±2.0	6.0	30	40	2.0:1/1.5:1	2.0:1/1.5:1	1600	K4
CA618-256033	6.0 - 18.0	25	±2.0	6.0	33	43	2.0:1/1.5:1	2.0:1/1.5:1	2000	K4
CA618-254010	6.0 - 18.0	25	±1.5	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-254012	6.0 - 18.0	25	±1.5	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-254015	6.0 - 18.0	25	±1.5	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-254017	6.0 - 18.0	25	±1.5	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-254020	6.0 - 18.0	25	±1.5	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-254023	6.0 - 18.0	25	±1.5	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-254024	6.0 - 18.0	25	±1.5	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-254025	6.0 - 18.0	25	±1.5	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K3S
CA618-254027	6.0 - 18.0	25	±1.5	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-254030	6.0 - 18.0	25	±1.5	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1600	K4-PA
CA618-254033	6.0 - 18.0	25	±1.5	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-253510	6.0 - 18.0	25	±1.5	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-253512	6.0 - 18.0	25	±1.5	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-253515	6.0 - 18.0	25	±1.5	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-253517	6.0 - 18.0	25	±1.5	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-253520	6.0 - 18.0	25	±1.5	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-253523	6.0 - 18.0	25	±1.5	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-253524	6.0 - 18.0	25	±1.5	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-253525	6.0 - 18.0	25	±1.5	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-253527	6.0 - 18.0	25	±1.5	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-253530	6.0 - 18.0	25	±1.5	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-253533	6.0 - 18.0	25	±1.5	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-253010	6.0 - 18.0	25	±1.5	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-253012	6.0 - 18.0	25	±1.5	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-253015	6.0 - 18.0	25	±1.5	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-253017	6.0 - 18.0	25	±1.5	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-253020	6.0 - 18.0	25	±1.5	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-253023	6.0 - 18.0	25	±1.5	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	500	K4
CA618-253024	6.0 - 18.0	25	±1.5	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-253025	6.0 - 18.0	25	±1.5	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-253027	6.0 - 18.0	25	±1.5	3.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-253030	6.0 - 18.0	25	±1.5	3.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-253033	6.0 - 18.0	25	±1.5	3.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-252510	6.0 - 18.0	25	±1.5	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	200	K4
CA618-252512	6.0 - 18.0	25	±1.5	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	250	K4
CA618-252515	6.0 - 18.0	25	±1.5	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	300	K4
CA618-252517	6.0 - 18.0	25	±1.5	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	350	K4
CA618-252520	6.0 - 18.0	25	±1.5	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K4
CA618-252523	6.0 - 18.0	25	±1.5	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-252524	6.0 - 18.0	25	±1.5	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	550	K4
CA618-252525	6.0 - 18.0	25	±1.5	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	650	K4
CA618-252527	6.0 - 18.0	25	±1.5	2.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K4
CA618-252530	6.0 - 18.0	25	±1.5	2.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-252533	6.0 - 18.0	25	±1.5	2.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-5001	6.0 - 18.0	30	±2.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-5002	6.0 - 18.0	30	±2.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-5003	6.0 - 18.0	30	±2.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-5004	6.0 - 18.0	30	±2.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-5005	6.0 - 18.0	30	±2.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-5006	6.0 - 18.0	30	±2.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	550	K6
CA618-306024	6.0 - 18.0	30	±2.5	6.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-306025	6.0 - 18.0	30	±2.5	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	850	K6
CA618-306027	6.0 - 18.0	30	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-5101	6.0 - 18.0	30	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-5102	6.0 - 18.0	30	±2.5	6.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-304010	6.0 - 18.0	30	±2.0	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-304012	6.0 - 18.0	30	±2.0	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-304015	6.0 - 18.0	30	±2.0	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-304017	6.0 - 18.0	30	±2.0	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-304020	6.0 - 18.0	30	±2.0	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-304023	6.0 - 18.0	30	±2.0	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-304024	6.0 - 18.0	30	±2.0	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-304025	6.0 - 18.0	30	±2.0	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-304027	6.0 - 18.0	30	±2.0	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-304030	6.0 - 18.0	30	±2.0	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-304033	6.0 - 18.0	30	±2.0	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-303510	6.0 - 18.0	30	±2.0	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-303512	6.0 - 18.0	30	±2.0	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-303515	6.0 - 18.0	30	±2.0	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-303517	6.0 - 18.0	30	±2.0	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-303520	6.0 - 18.0	30	±2.0	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-303523	6.0 - 18.0	30	±2.0	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-303524	6.0 - 18.0	30	±2.0	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-303525	6.0 - 18.0	30	±2.0	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-303527	6.0 - 18.0	30	±2.0	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-303530	6.0 - 18.0	30	±2.0	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-303533	6.0 - 18.0	30	±2.0	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-303010	6.0 - 18.0	30	±2.0	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-303012	6.0 - 18.0	30	±2.0	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-303015	6.0 - 18.0	30	±2.0	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-303017	6.0 - 18.0	30	±2.0	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-303020	6.0 - 18.0	30	±2.0	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-303023	6.0 - 18.0	30	±2.0	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-303024	6.0 - 18.0	30	±2.0	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-303025	6.0 - 18.0	30	±2.0	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-302510	6.0 - 18.0	30	±2.0	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	250	K6
CA618-302512	6.0 - 18.0	30	±2.0	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-302515	6.0 - 18.0	30	±2.0	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-302517	6.0 - 18.0	30	±2.0	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-302520	6.0 - 18.0	30	±2.0	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-302523	6.0 - 18.0	30	±2.0	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-302524	6.0 - 18.0	30	±2.0	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-302525	6.0 - 18.0	30	±2.0	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-6001	6.0 - 18.0	38	±2.5	5.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-6002	6.0 - 18.0	38	±2.5	5.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-6003	6.0 - 18.0	37	±2.5	5.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-6004	6.0 - 18.0	36	±2.5	5.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-6005	6.0 - 18.0	35	±2.5	6.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-6006	6.0 - 18.0	34	±2.5	6.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	600	K6
CA618-356024	6.0 - 18.0	35	±2.5	6.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	650	K6
CA618-356025	6.0 - 18.0	35	±2.5	6.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	700	K6
CA618-6008	6.0 - 18.0	32	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-356027	6.0 - 18.0	35	±2.5	6.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-6114	6.0 - 18.0	35	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1200	K6+ISO
CA618-356030	6.0 - 18.0	35	±2.5	6.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K6
CA618-6115	6.0 - 18.0	35	±2.5	6.0	32	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	BB+ISO
CA618-356033	6.0 - 18.0	35	±2.5	6.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-354010	6.0 - 18.0	35	±2.0	4.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-354012	6.0 - 18.0	35	±2.0	4.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-354015	6.0 - 18.0	35	±2.0	4.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-354017	6.0 - 18.0	35	±2.0	4.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-354020	6.0 - 18.0	35	±2.0	4.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-354023	6.0 - 18.0	35	±2.0	4.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-354024	6.0 - 18.0	35	±2.0	4.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-354025	6.0 - 18.0	35	±2.0	4.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-354027	6.0 - 18.0	35	±2.0	4.0	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-354030	6.0 - 18.0	35	±2.0	4.0	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-354033	6.0 - 18.0	35	±2.0	4.0	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-353510	6.0 - 18.0	35	±2.0	3.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-353512	6.0 - 18.0	35	±2.0	3.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-353515	6.0 - 18.0	35	±2.0	3.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-353517	6.0 - 18.0	35	±2.0	3.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-353520	6.0 - 18.0	35	±2.0	3.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-353523	6.0 - 18.0	35	±2.0	3.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-353524	6.0 - 18.0	35	±2.0	3.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-353525	6.0 - 18.0	35	±2.0	3.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-353527	6.0 - 18.0	35	±2.0	3.5	27	37	2.0:1/1.5:1	2.0:1/1.5:1	900	K6
CA618-353530	6.0 - 18.0	35	±2.0	3.5	30	38	2.0:1/1.5:1	2.0:1/1.5:1	1500	K4-PA
CA618-353533	6.0 - 18.0	35	±2.0	3.5	33	41	2.0:1/1.5:1	2.0:1/1.5:1	2000	K8-PA
CA618-353010	6.0 - 18.0	35	±2.0	3.0	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-353012	6.0 - 18.0	35	±2.0	3.0	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-353015	6.0 - 18.0	35	±2.0	3.0	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-353017	6.0 - 18.0	35	±2.0	3.0	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-353020	6.0 - 18.0	35	±2.0	3.0	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-353023	6.0 - 18.0	35	±2.0	3.0	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-353024	6.0 - 18.0	35	±2.0	3.0	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-353025	6.0 - 18.0	35	±2.0	3.0	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6
CA618-352510	6.0 - 18.0	35	±2.0	2.5	10	20	2.0:1/1.5:1	2.0:1/1.5:1	300	K6
CA618-352512	6.0 - 18.0	35	±2.0	2.5	12	23	2.0:1/1.5:1	2.0:1/1.5:1	350	K6
CA618-352515	6.0 - 18.0	35	±2.0	2.5	15	25	2.0:1/1.5:1	2.0:1/1.5:1	400	K6
CA618-352017	6.0 - 18.0	35	±2.0	2.5	17	27	2.0:1/1.5:1	2.0:1/1.5:1	450	K6
CA618-352520	6.0 - 18.0	35	±2.0	2.5	20	30	2.0:1/1.5:1	2.0:1/1.5:1	500	K6
CA618-352523	6.0 - 18.0	35	±2.0	2.5	23	33	2.0:1/1.5:1	2.0:1/1.5:1	660	K6
CA618-352524	6.0 - 18.0	35	±2.0	2.5	24	34	2.0:1/1.5:1	2.0:1/1.5:1	715	K6
CA618-352526	6.0 - 18.0	35	±2.0	2.5	25	35	2.0:1/1.5:1	2.0:1/1.5:1	800	K6

0.5 to 4.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

0.5 to 6.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

0.5 to 18.0 GHz

Model No.	Frequency Range	Gain dB (Min/Typ)	Flatness dB (Max/Typ)	Noise dB (Max/Typ)	P-1dB dBm (Min/Typ)	IP3 dBm (Typ)	VSWR Input (Max/Typ)	VSWR Output (Max/Typ)	+12 /+15 VDC Current (mA) Nom/Max	Size

2.0 GHz up to 22.0 GHz

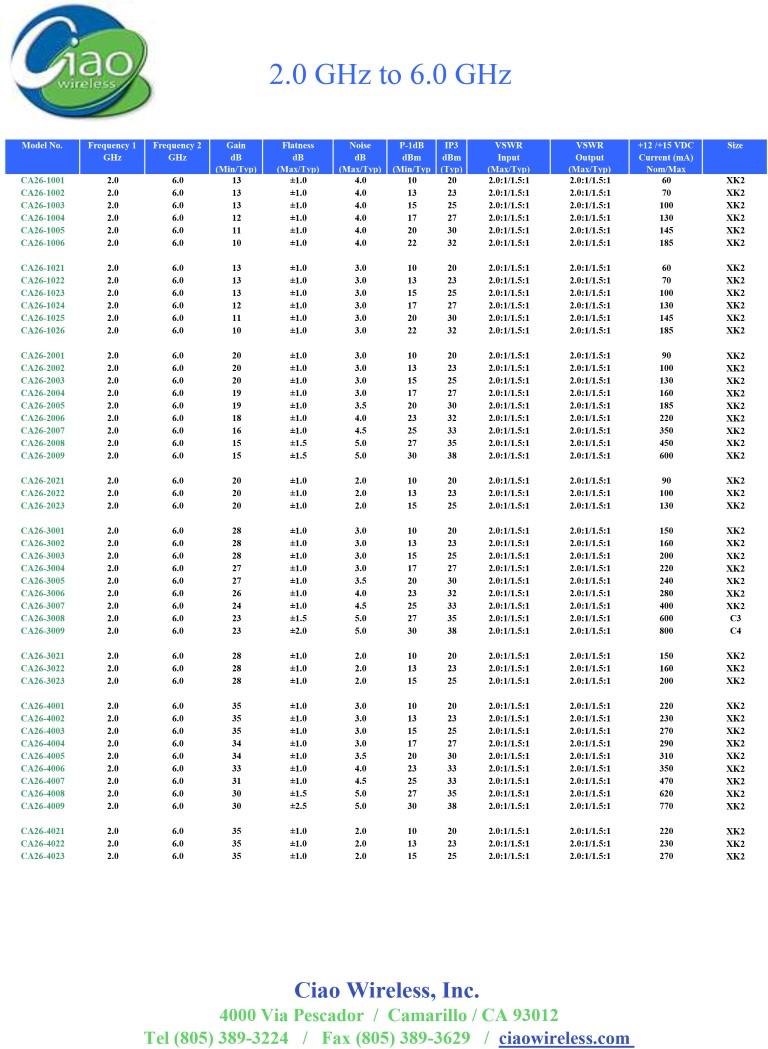

2.0 – 6.0 GHz

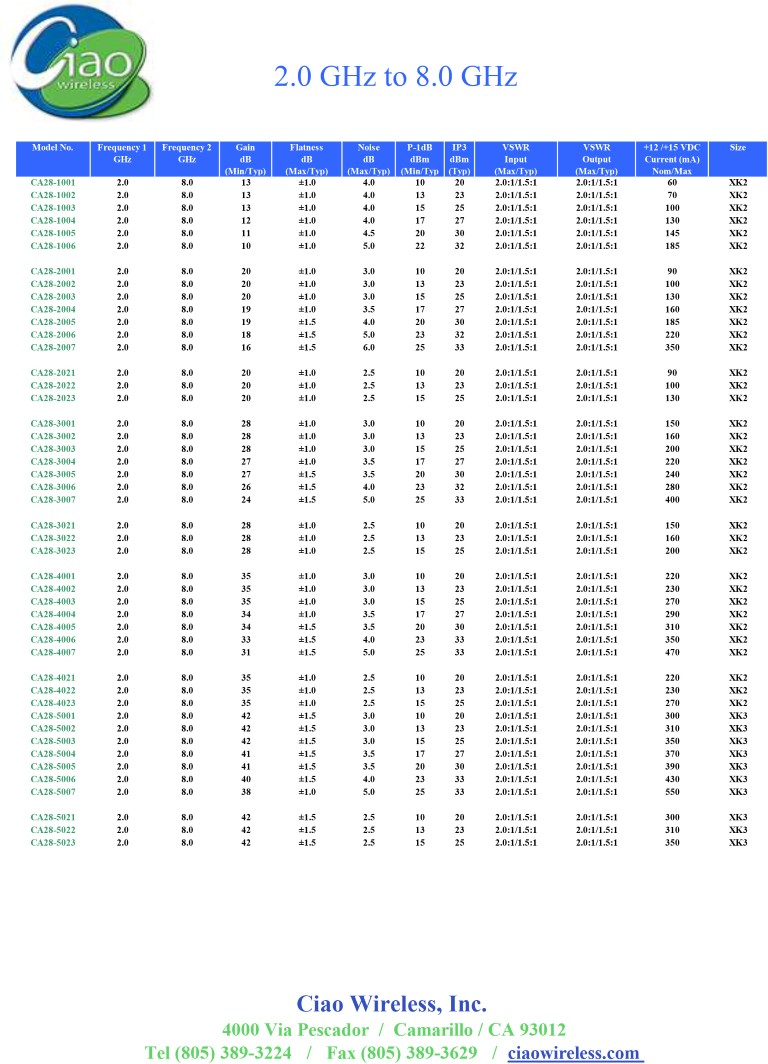

2.0 – 8.0 GHz

2.0 – 10.0 GHz

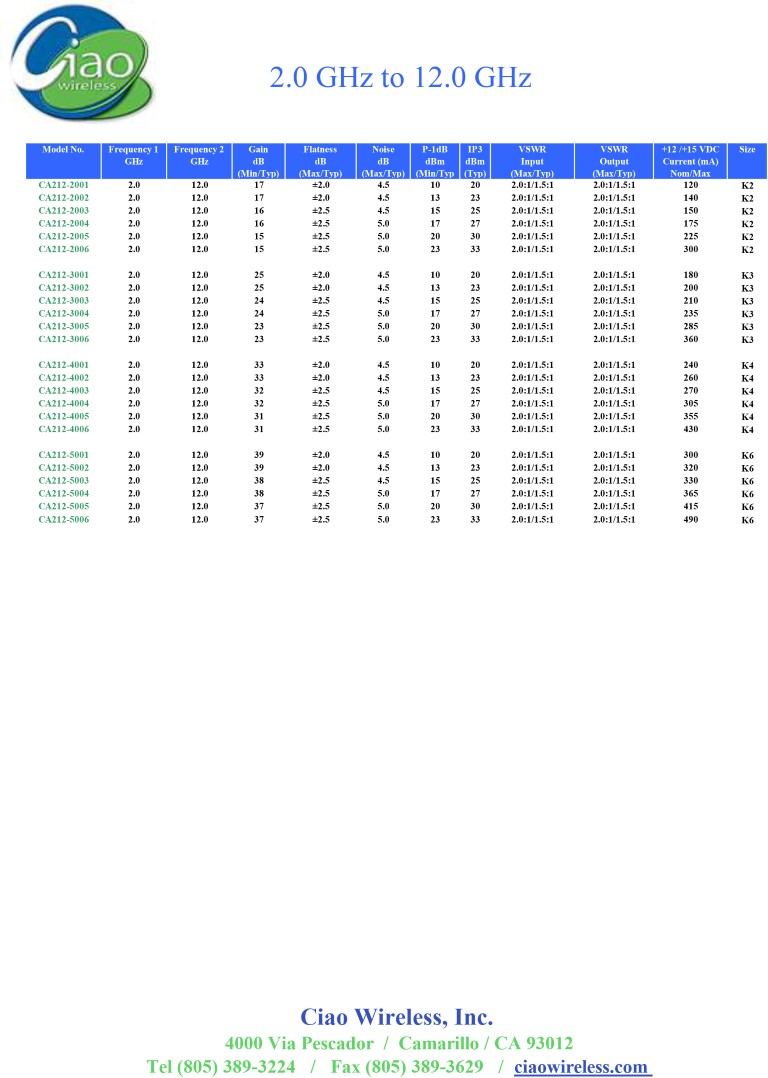

2.0 – 12.0 GHz

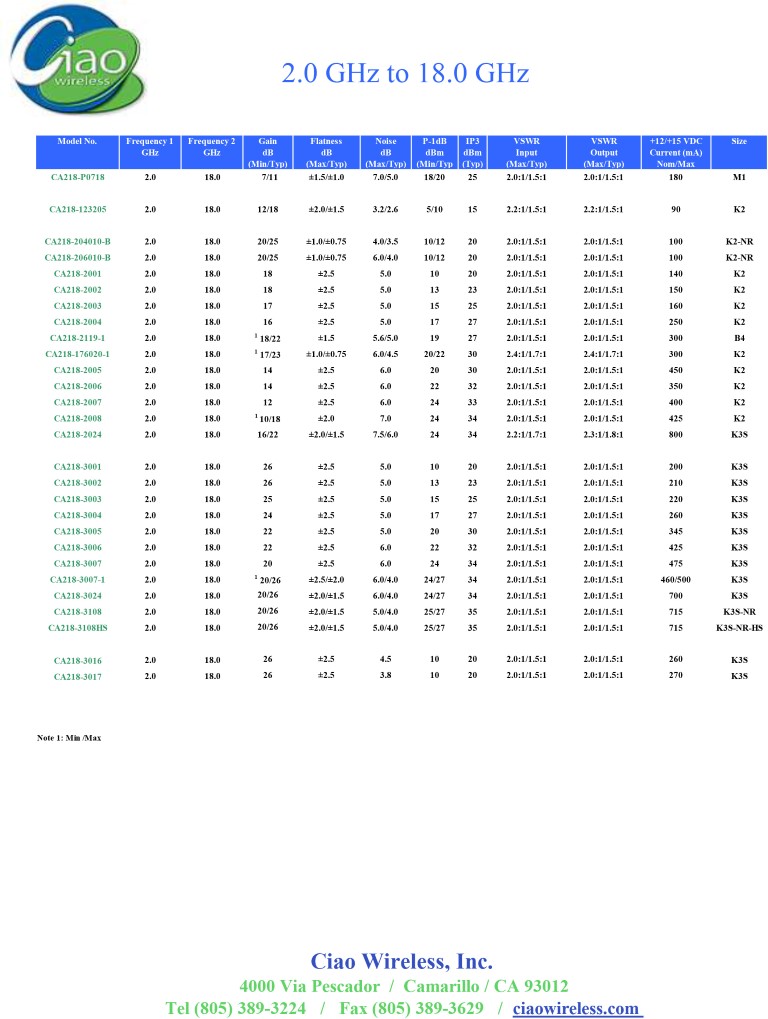

2.0 – 18.0 GHz

2.0 – 20.0 GHz

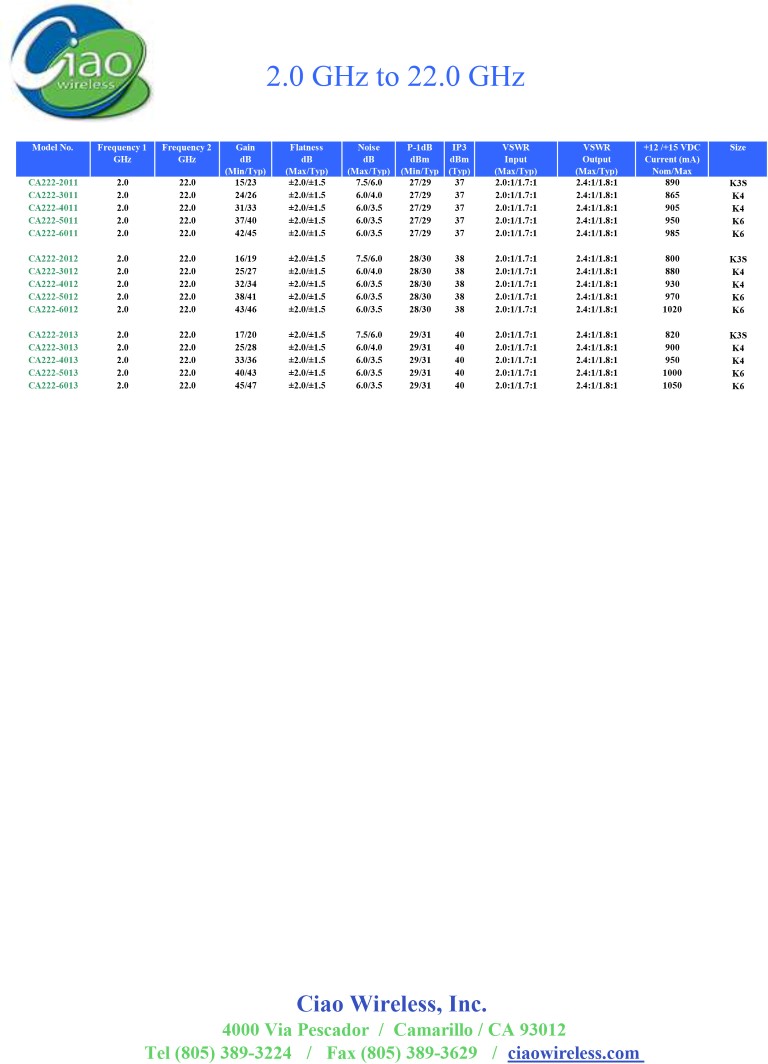

2.0 – 22.0 GHz

5.0 GHz up to 22.0 GHz

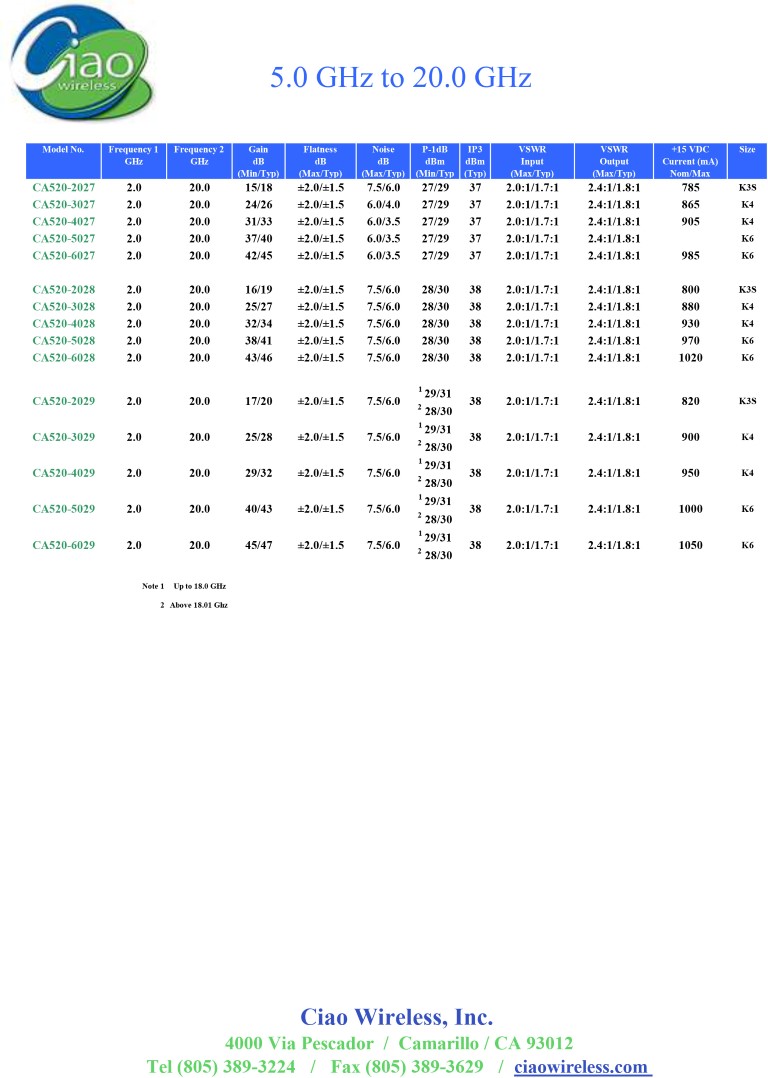

5.0 – 20.0 GHz

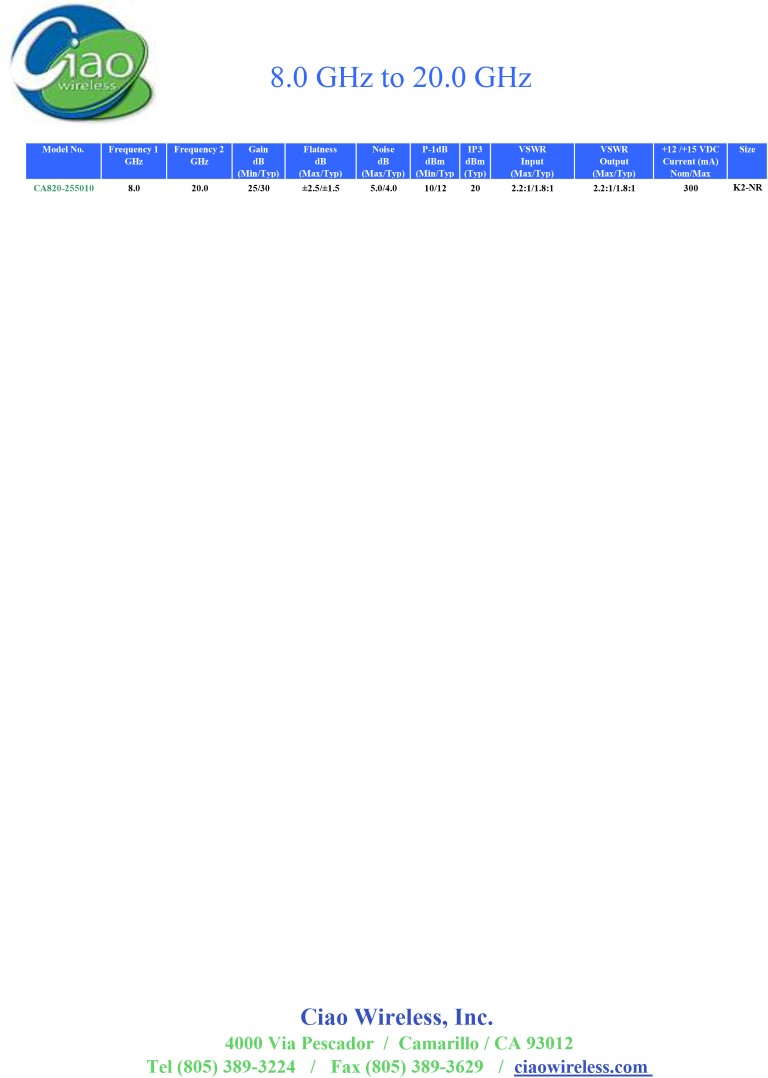

8.0 – 20.0 GHz

High Performance. Innovative. Reliable.

Ciao Wireless is ISO 9001:2015 and AS9100:2016 Certified

Request a Quote

WordPress Lightbox
