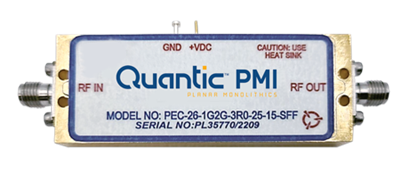

RF & Microwave Amplifiers

Quantic PMI offers a full line of RF and Microwave Amplifiers that range from up to 70 GHz. Available in Narrow Band, Octave and Half Octave Band, Broadband, Multi-Octave and ultra-Broadband models. Available in a variety of types: Variable Gain, Gain Correction, Positive Gain Slope, Limiting Amplifiers and High IP Amplifiers for SIGINT applications. Quantic PMI designs and manufactures Portable Test-Bench Amplifiers for mobile or laboratory applications which can be designed for use with various power supplies.

If you do not see exactly what you require on this website, please contact sales@quanticpmi.com because we offer amplifiers designed and built to your specifications at catalog prices.

Features that are supplied with all our amplifiers:

Internal Voltage Regulation for +12 to +15 VDC Operation
Internal Reverse Voltage Protection
Unconditional Stability
Each unit has a unique serial number and date code.
Swept Data with each unit. (S21, S11, S22 and Noise Figure)
Summary data sheet with each unit.
Operating Temperature -20 °C to +70 °C
Amplifier Options:

Modified internal voltage regulators for +28 VDC operation
Any package or form factor can be supplied (Usually without a NRE charge)
Connector types can be specified.
Gain and OP1dB values can be optimized to meet your requirement.
Operating temperature ranges can be increased to -54 °C to +85 °C.
All amplifiers can be optimized to your specific frequency of interest.
Temperature Compensation is available on all amplifiers.
Hermetic Sealing is available. Standard catalog amplifiers are sealed with a conductive epoxy.
Military or Space Screening is available.
Gain and Phase matching is available on most amplifiers.
